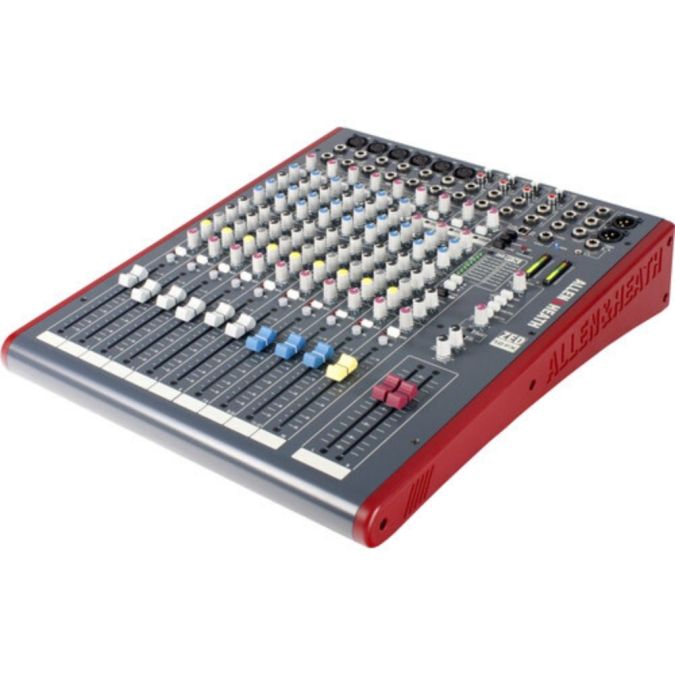

Allen & Heath ZED-12FX 12-Channel Multipurpose USB Mixer with Effects
The multipurpose Allen & Heath ZED-12FX mixer combines six mic/line inputs, three stereo inputs for effect returns and portable music players or keyboards, a 24-bit effects processor, and a USB digital audio interface compatible with Mac and Windows computers-in a compact and portable package small enough for carrying to your gig, whether recording live or in the studio.
Features:
- 6 mono channels
- 3 stereo channels with 2-band EQ and inputs for extra sources
- 16 internal time-delay effects
- Neutrik mic XLR
- Neutrik 1/4 inch jacks
- Channel insert
- Super wide gain ‘DuoPre’ mic line input
- 3 band EQ with MusiQ
- 2 pre-fade Aux sends
- 1 post-fade Aux send
- 1 internal FX send
المنتجات المقترحة
فيزا وماستر كارد
منتجات شاهدها عملاء آخرون
معاينة موقع سماعة تك
تفاصيل المُنتج
Inputs & Outputs:
- Mic Inputs: 6 x XLR, balanced
- Line In:
- Channels 1 to 6: 6 x 1/4" / 6.3 mm, balanced or unbalanced (mono)
- Stereo Input 1 (CH 7/8): 2 x 1/4" / 6.3 mm, balanced or unbalanced (L/R)
- Stereo Input 2 (CH 9/10) 2 x 1/4" / 6.3 mm, balanced or unbalanced (L/R)
- Stereo Input 3 (CH 11/12) 2 x 1/4" / 6.3 mm, balanced or unbalanced (L/R)
- Stereo RTN: 2 x RCA
- 2-Track RTN: 2 x RCA
- Inserts:
- Channels 1 to 6, Send/Return: 6 x 1/4" / 6.3 mm
- Stereo Bus, Send/Return: 2 x 1/4" / 6.3 mm
- Main Output:
- 2 x XLR, balanced (L/R)
- 1 x 1/4" / 6.3 mm mono sum of main L/R (post-fade signals)
- Effect Sends:
- 2 x 1/4" / 6.3 mm Aux outputs (pre-fade send)
- 1 x 1/4" / 6.3 mm Aux output (post-fade send)
- 1 x Internal FX send to onboard effects, post-fade send
- Headphone:
- 1 x 1/4" / 6.3 mm, stereo
- 1 x 1/8" / 3.5 mm, stereo
- Record Output:
- Record Output: 2 x RCA
- Alt Output: 2 x RCA
- USB: USB stereo I/O
Effects
- DSP: 48 kHz / 24-bit
- Controls:
- Tap button
- Up/down button
Operating Levels:
- Input:
- Mono Channel (XLR) Input: +6 to -63 dBu (nominal), +17 dBu (maximum)
- Mono Channel Line Input (1/4" Jack): +10 to -26 dBu, +30 dBu (maximum)
- Stereo Input (1/4" Jack or RCA): 0 dBu (nominal), control = Off to +10 dB
- Output:
- L/R and Mono XLR Outputs: 0 dBu (nominal), +21 dBu (maximum)
- Aux Outputs (1/4" Jacks): 0 dBu (nominal), +21 dBu (maximum)
- Alt Outputs (RCA Jacks): 0 dBu (nominal), +21 dBu (maximum)
- Rec Outputs (RCA Jacks): 0 dBu (nominal), +21 dBu (maximum)
Frequency Response:
- Mic Input: Mic In to Mix L/R Out, 30 dB Gain: +0.5/-1 dB, 20 Hz to 20 kHz
- Line Input: Line In to Mix L/R Out, 0 dB Gain: +0.5/-1 dB, 10 Hz to 30 kHz
- Stereo Input: Stereo In to Mix L/R Out: +0.5/-1 dB, 10 Hz to 30 kHz
THD + N:
- Mic Input:
- Mic In to Mix L/R Out, 0 dB Gain, 1 kHz, +10 dBu Out: 0.004%
- Mic In to Mix L/R Out, 30 dB Gain, 1 kHz: 0.014%
- Line Input: Line In to Mix L/R Out, 0 dB Gain, 0 dBu, 1 kHz: 0.005%
- Stereo Input: Stereo In to Mix L/R Out, 0 dB Gain, +10 dBu, 1 kHz: 0.003%
Headroom:
- Analog: Analog Headroom from Nominal (0 Vu): 21 dB
- USB: USB I/O Headroom from Nominal (0 Vu): 14 dB
Noise:
- Microphone: Mic Pre EIN at Maximum Gain, 150 Ohm Source Impedance, 22 Hz to 22 kHz: -127 dBu
- Mix L/R: Mix L/R Out, L/R Faders = 0, Levels Minimum, 22 Hz to 22 kHz: -88 dBu
USB Audio Codec:
- USB Compliance:
- USB Audio In/Out: USB 1.1-compliant, 16-bit
- Mac, Windows
- Sample Rate: 32, 44.1, 48 kHz
General:
- Phantom Power: 48 V, switchable
- Power: 100-240 V, 47/63 Hz, 40 W (maximum)
- Dimensions (L x D x H): 15.2 x 18.3 x 3.9" / 38.6 x 46.5 x 9.9 cm
- Weight: 14.3 lb / 6.5 kg
Warranty: 1 year
ماذا في العلبة
- Allen & Heath ZED-12FX 12-Channel Multipurpose USB Mixer with Effects
- USB Cable
- Power Cable
الفيديوهات
مواصفات المُصنع
USB AUDIO FLEXIBILITY
Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that’s it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations
MUSIQ
ZED-12FX features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ – with optimised slope (or Q factor) for equalising individual instruments.
ZED-FX
ZED-12FX has an essential selection of 16 time-delay effects, designed for small groups who don’t want to carry around an effects unit with their gear but who still want great quality FX at their gigs and on their recordings. Our DSP engineers worked hard, crafting and refining beautiful reverb algorithms to enhance every performance. These effects are available nowhere else at this price point – this quality and integration is only available from the ZED-FX. ZED effects are easily controlled using 3 buttons with 9 display LEDs. For example, the ideal delay time can be quickly tapped-in, or the perfect amount of reverb on the lead vocal can be dialled-in. There is one-stop navigation and editing – in fact, it’s just as easy as using effects pedals. To alter effects parameters, the TAP button is held down and the up/down buttons pressed to adjust the specific parameter for that effect, for example, the decay length on PLATE, or the depth on CHORUS.
DUOPRE
Based on the proven pre-amps from the hugely successful PA series, ZED-12FX has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge – 69dB of range to be exact – and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance.
