Saramonic Blink500 Pro B1 Lightweight, Ultracompact Microphone System For Up To 2 People
The Saramonic Blink 500 Pro B1 is an advanced 2.4 GHz wireless system that provides stellar, broadcast-quality sound to cameras, mobile devices and more. Ideal for broadcasters, podcasters, vloggers, livestreamers, YouTube creators and filmmakers. This ultra-portable and featherweight kit comes with a single clip-on wireless transmitter with a built-in mic, a pro grade lavalier microphone, a dual-channel receiver, and a portable charging carry case. The receiver comes with both TRS and TRRS output cables and easily slides into the shoe mount of a camera or cage. It is so compact and lightweight.
Recommended Products
Delivered within 3-5 working days
Prepaid Product
Customer Also Viewed
Samma3a Review
Technical Specification
Transmitter Specifications:
- Reception Type: 2.4GHz Digital Frequency
- RF Frequency Band: 2400 to 2483.5 MHz
- Modulation: Gaussian Frequency-Shift Keying (GFSK)
- Operating Range: Up to 328' (100m)
- RF Output Power: 10mW
- Built-in Microphone Polar Pattern: Omnidirectional
- Frequency Response 50Hz to 18KHz
- Built-in Microphone Maximum SPL: 120dB
- Built-in Microphone Sensitivity: -39dB
- Lavalier Microphone Maximum SPL: 110dB
- Lavalier Microphone Sensitivity: -39dB
- Reference Audio Input Level: -30~-42dBv MIC input, 0dB Attenuation
- Input Connector: 3.5mm Mic In / Line In (Mic with Plug-in-Power)
- Digital Signal Resolution: 24bit / 44.1kHz
- Signal-to-Noise Ratio: ≥78dB
- Voice Delay: ≤6ms
- Distortion: ≤0.05%
- Power Requirements: Built-in Li-ion Battery, Micro USB DC 5V or Charging Contact
- Battery Life: Approximately 8-hours
- Antenna: PIFA Antenna
- High-contrast OLED Screen Resolution: 128 X 64 pixels
- Other Functions: Tactile Mute Function
- Weight: 1.13oz (32g)
- Dimensions: 2.22 x 1.5 x 1.03” (56.5 × 38 × 26.1mm)
- Operating Temperatures: 0° to 122°F (0°C to 50°C)
- Storage Temperatures: -4° to 131°F (–20°C to +55°C)
SR-M1 Lavalier Specifications:
- Acoustic Principle: Electret Condenser
- Polar Pattern: Omnidirectional
- Connector: 3.5mm
- Cable Length: 4.1’ (1.25m)
- Maximum SPL: 110dB
- Sensitivity: -39dB+/-2dB(0dB=1V/Pa,1kHz)
- Signal-to-Noise Ratio: ≥60dB
- THD: <1% (94dB SPL at 1kHz)
- Power Requirements: Plug-in-Power (1V～10V)
- Standard Operating Voltage: 3V
- Current Consumption: <500μA
- Output Impedance: <2.2KΩ
Receiver Specifications:
- Reception Type: 2.4GHz Digital Frequency
- RF Frequency Band: 2400 to 2483.5 MHz
- Modulation: Gaussian Frequency-Shift Keying (GFSK)
- Operating Range: Up to 328' (100m)
- Line Output Connector: 3.5mm
- Output Level: -60dBV to -20dBV
- Output Mode Types: Mono / Stereo
- Digital Signal Resolution: 24bit / 44.1kHz
- Signal-to-Noise Ratio: ≥78dB
- Voice Delay: ≤6ms
- Distortion: ≤0.05%
- Headphone Output Connector: 3.5mm
- Power Requirements: Built-in Li-ion Battery, Micro USB DC 5V or Charging Contact
- Battery Life: Approximately 8-hours
- Antenna: PIFA Antenna
- High-contrast OLED Screen Resolution: 128 X 64 pixels
- Weight: 1.13oz (32g)
- Dimensions: 2.2 x 1.5 x 1.16” (56 × 38 × 29.4mm)
- Operating Temperatures: 0° to 122°F (0°C to 50°C)
- Storage Temperatures: -4° to 131°F (–20°C to +55°C)
Blink 500 Pro B1 Charging Case Specifications:
- Power Requirements: Powered by USB-C port to USB-A Charger (5V/1.5A)
- Power Capacity: 1200mAh
- Box's Charging Time: 3-hours
- Weight: 7.05oz (200g)
- Dimensions: 4.84 x 4.02 x 1.56” (123 x 102 × 39.7mm)
- Operating Temperatures: 0° to 122°F (0°C to 50°C)
- Storage Temperatures: -4° to 131°F (–20°C to +55°C)
Warranty: 1 year
What Is In The Box

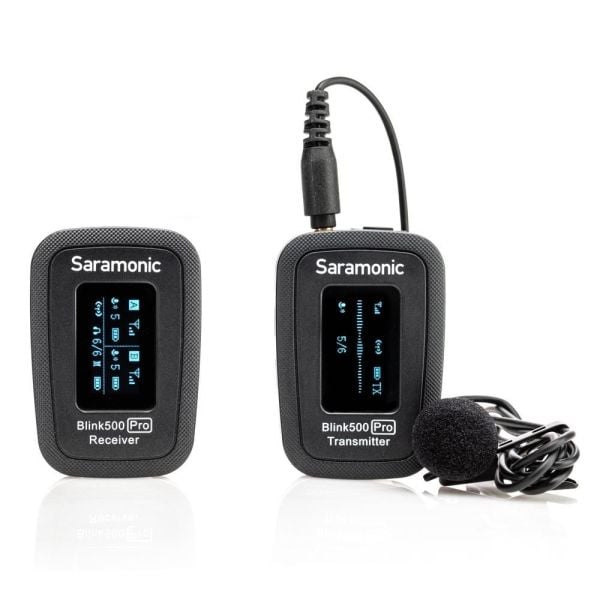

- 1 x Blink 500 Pro TX Transmitter with OLED Display, Built-In Microphone and Clip
- 1 x Blink 500 Pro RX Dual Receiver with OLED Display, Built-In Clip and Camera Shoe-Mount
- 1 × Blink 500 Pro B1 Portable Charging Carry Case
- 1 x SR-M1 Omnidirectional Lavalier Microphone
- 1 x Alligator-Style Lavalier Microphone Clip
- 1 x Foam Lavalier Windscreen
- 1 x Furry High-Wind Press-On Windscreen for Blink 500 Pro TX Transmitter
- 1 × Zipper Bag
- 1 x 1’ (30.5 cm) Gold-Plated 3.5mm TRS to TRS Output Cable for Cameras
- 1 x 1’ (30.5 cm) Gold-Plated 3.5mm TRS to TRRS Output Cable for Smartphones, Tablets and Computers
- 1 x 1’ (30.5 cm) Gold-Plated USB-C to USB-A Charging Cable
- 1 x 1’ Gold-Plated Micro USB to USB-A Charging Cable
Videos
Manufacture Description
The Tiny, but Mighty TX Transmitter
The Blink 500 Pro TX transmitter is ridiculously compact and lightweight, yet it delivers high-quality professional sound, anyway you want to use it. It features a built-in omnidirectional microphone with an impressive sensitivity of -39dB. Giving you dynamic, crystal-clear sound quality on a transmitter that you can easily clip to a shirt, collar, or slide into a pocket, yet versatile enough to set on a table or podium. The TX transmitter also operates as a traditional bodypack transmitter with the included SR-M1 professional omnidirectional lavalier microphone, providing an even more visually discreet miking solution. It can also be used handheld, by itself or with the optional Blink500 Pro HM Handheld Mic Holder (sold separately).
Mic or Line, It’s All Fine
As an added unique and amazing feature, the Blink 500 Pro TX transmitter also allows you to transmit microphone-level or line-level signal wirelessly and provides plug-in power to microphones. This makes the system tremendously versatile allowing you to connect it to virtually any audio source. You can use the included SR-M1 lavalier or plug in a mini-shotgun microphone, you can add a headset microphone, or a higher-end lavalier. Just about any 3.5mm microphone wired for standard TRS pin-out will work, and the adjustable mic gain lets you get perfect levels every time. Switch the TX transmitter to line-level and connect it to mixers, music players, or any line-level device output you want to transmit wirelessly to the receiver.
For Cameras, Mobile Devices, Computers and More
The Blink 500 Pro B1 system’s RX dual-channel receiver includes both TRS and TRRS output cables. Allowing the system to work perfectly with DSLR, mirrorless, and other kinds of cameras, recorders, mixers, modern computers and so much more. As well as smartphones and tablets that have headphone jacks. Easily pair with a Lightning or USB-C dongle (not included) for mobile devices with no 3.5mm input. A 3.5mm headphone output with level control lets you monitor the sound in real-time, even if your camera or device lacks a headphone output. The RX features a much-desired selectable Mono / Stereo output setting, giving you the ability record each mic to separate channels of camera’s and recorder’s mic inputs, when using an additional TX transmitter (sold separately). It also features a vivid OLED display that lets you see vital information and battery life of the receiver and transmitters at a glance, without having to access the menu.
