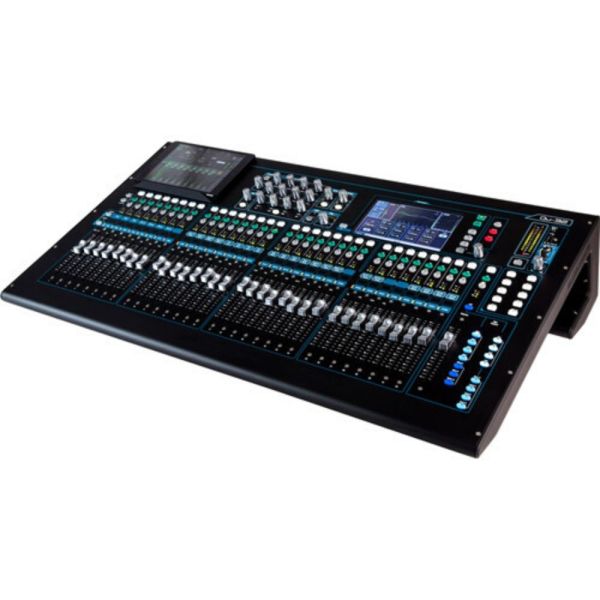

Allen & Heath Qu-32 38-In/28-Out Digital Mixing Console

Samma3a Rating:
OMR1,336.08
Out of stock

Designed to accommodate a wide variety of live sound-reinforcement and recording scenarios, the chrome edition Allen & Heath Qu-32C is a 38-in/28-out digital mixing console that doubles as a 32×32 USB recording interface. Featuring 32 of the company's recallable AnalogiQ microphone preamps, and powered by a 5-core ARM processor, the Qu-32 provides a variety of integrated effects and processing including channel-independent 4-band parametric EQs, compressors, delay and reverb.

Features:

  • 32 Mono Mic/Line Inputs (TRS + XLR)
  • Recallable AnaLOGIQTM Preamps
  • 3 Stereo Inputs (TRS)
  • 24 Mix Outputs (XLR)
  • 4 Stereo Groups (switchable to Mix mode)
  • Up to 11 Monitor Mixes (4 mono + 7 stereo)
  • 2 Stereo Matrix Outs
  • 4 FX Engines
  • 4 dedicated FX Sends / Returns
Read More

Customer Also Viewed

Samma3a Review

Not Available

Technical Specification

Mixer

  • Number of Analog Input Channels: 32
  • Faders: 3.9" / 100 mm Motorized
  • Mix Routing: 4 x Stereo FX Return
  • Groups:
    • 4 x Mute Group
    • 4 x DCA Group
  • Display: 7" / 177.8 mm Touchscreen
  • Display Resolution/Color: Main Display: 800 x 480
  • Meter Range: -48 to -3 dBFS Peak/Clip (+19 dBu at XLR Output)
  • Meter Calibration: 0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)

Signal Processing

  • Gain/Trim Range
    • Line: ±24 dB (Stereo Channels)
    • Mic/Line: -10 dB to +60 dB (in 1 dB Steps)
  • Input Polarity: Normal/Reverse
  • Gate Parameters:
    • Threshold: -72 to +18 dBu
    • Depth: 0 to 60 dB
    • Attack: 50 μs to 300 ms
    • Hold: 10 ms to 5 sec
    • Release: 10 ms to 1 sec
  • Compressor Parameters:
    • Threshold: -46 to 18 dBu
    • Ratio: 1:1 to ∞:1
    • Attack: 300 μs to 300 ms
    • Release: 100 ms to 2 sec
    • Knee: Soft, Hard
  • EQ: FX Returns: 4-Band Parametric
  • EQ Parameters:
    • 1 x HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
    • 2 x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz
    • 1 x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
  • Graphic EQ: 28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
  • Filters: High-Pass: 20 Hz to 20 kHz, 12 dB/Octave
  • Channel Output/Source Monitoring: AFL, PFL, Post-Preamp, Post-EQ, Post-FX
  • Internal Effects:
    • Reverb
    • Delay
    • Reverb (Gated)
    • ADT
    • Chorus
    • Phaser
    • Flanger
  • Real Time Analyzer: 31-Band 1/3 Octave, 20 Hz to 20 kHz
  • Audio Delay: Adjustable Up to 170 ms

Digital Audio

  • Sample Rates: 48 kHz
    • AES3 Output: 48 kHz
    • Stereo Record: 48 kHz
    • Stereo Playback: 44.1 / 48 kHz
    • Multitrack Record: 48 kHz
    • Multitrack Playback: 48 kHz
  • Bit Depth:
    • AD/DA Conversion: 24-Bit Delta Sigma
    • Stereo Record: 24-Bit
    • Stereo Playback: 16 / 24-Bit
    • Multitrack Record: 24-Bit
    • Multitrack Playback: 24-Bit
  • Latency:
    • 1.2 ms (Mic Input to XLR Output)
    • 0.7 ms (Mic Input to AES Output)

Performance:

  • dBFS Reference Level: +18 dBu = 0 dBFS
  • Headroom: +18 dB
  • Frequency Response: 20 Hz to 20 kHz +0/-0.5 dB
  • Max Input Level:
    • Aux Input: +22 dBu
    • Mic Input: +19 dBu
    • Line Input: +29 dBu
  • Output Level
    • Line Output: +22 dBu (Max) +4 dBu (Nominal)
    • Stereo Output: +22 dBu (Max) +4 dBu (Nominal)
    • Analog Dynamic Range: 112 dB
  • I/O Impedance:
    • 1/4" Stereo Output: <75 ohms
    • AES3 Output: 110 ohms
    • Aux Input: >7 kilohms
    • XLR Line Output: <75 ohms
    • XLR Mic/Line Input: >5 kilohms
    • 1/4" Mic/Line Input: >10 kilohms
  • Noise Floor: -90 dBu with Inputs Muted
  • THD+N:
    • 0.0005% at Unity Gain
    • 0.001% at +30 dB Gain
  • Signal Generator: Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)

Connectivity

  • Analog Inputs:
    • 1 x XLR Talkback Input
    • 32 x XLR Balanced Mic Input
    • 32 x 1/4" TRS Balanced Line Input
    • 4 x 1/4" TRS Balanced Aux Input (2 Stereo Pairs, Half-Normalled)
    • 1 x 1/8" / 3.5 mm Unbalanced Aux Input
  • Analog Outputs:
    • 10 x XLR Balanced Mix Output
    • 2 x XLR Balanced Main Output
    • 4 x XLR Balanced Subgroup Output
    • 4 x XLR Balanced Matrix Output
    • 4 x 1/4" TRS Balanced Aux Output (2 Stereo Pairs)
  • Digital I/O:
    • 1 x RJ45 (Network)
    • 1 x XLR AES3 Output
    • 1 x etherCON dSNAKE (I/O)
  • USB:
    • 1 x USB Type-A (External Memory)
    • 1 x USB Type-B (USB 2.0, Audio Streaming)

Recording:

  • Max Multitrack Recording: 18 Tracks

Power

  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
  • Power Consumption: 150 W (Maximum)

Physical

  • Operating Temperature: 32 to 95°F / 0 to 35°C
  • Dimensions: 33.5 x 19.7 x 7.4" / 850 x 500 x 186 mm
  • Weight: 44 lb / 20 kg

Warranty: 1 year

What Is In The Box

  • Allen & Heath Qu-32 38-In/28-Out Digital Mixing Console

Videos

No Videos Available

Manufacture Description

Qu Ecosystem

Qu Ecosystem

Qu provides much more than just a mixer. Qu is an entire ecosystem with Remote AudioRacks allowing I/O to be placed where it’s needed, ME Personal Mixers expanding monitor mixes and enabling simple, time-saving local control, Qu Apps for complete remote setup and wireless mixing on stage or anywhere else in the venue, ProFactory Mic presets to speed up preparation time and ensure the best sound, plus USB recording and DAW integration for powerful workflow optimisation from one centrepiece device.

AnalogiQTM Preamps

AnalogiQTM Preamps

Qu-24 features twenty-four AnalogiQTM digitally controlled preamps with advanced zero-crossing detection and a padless 1dB-step gain stage, which have been closely allied to the DSP for optimal gain accuracy and audio transparency. The analogue signal is captured by high-class, low latency 24bit analogue to digital converters, and are matched to 24bit digital to analogue converters to deliver the required high quality output. The AnalogiQTM preamp design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.

The Mixing Experience

The Mixing Experience

Having massive processing power and advanced functionality counts for nothing if you can’t access the controls you need in a heartbeat. The 800×480, True Colour Touchscreen and its dedicated rotary encoder form the heart of Qu-24’s interface, providing super-fast access to all settings and parameters. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more. Complementing the touchscreen is the SuperStrip – a set of single function physical controls for instant access to gain, HPF, 4 band PEQ, gate, compressor, GEQ and pan. The screen overview also follows the control being turned.
