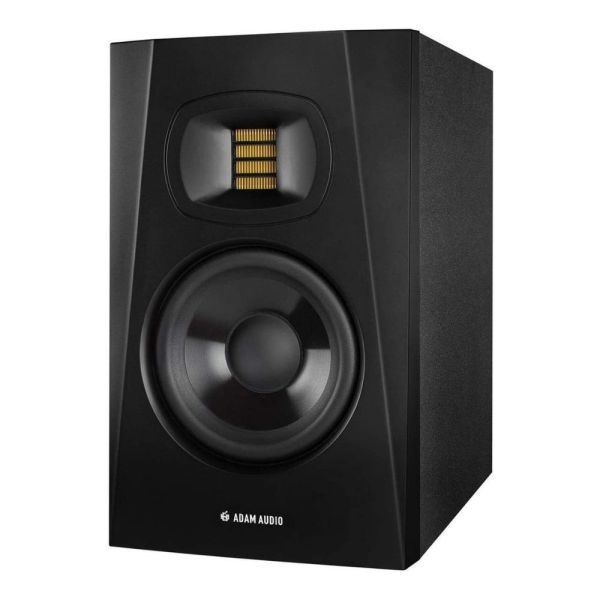

ADAM Audio T5V Two-Way 5-Inch Active Nearfield Monitor
With its 5” woofer the bass-frequency response of the T5V extends to 45 Hz. The new U-ART tweeter, a breakthrough solution for use in high-resolution recording and mixing on a budget, goes up to 25 kHz and is mated to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.
Features:
- U-ART 1.9” Accelerated Ribbon Tweeter with HPS Waveguide
- Polypropylene 5” woofer and rear-firing bass-reflex port
- Cumulated Amp. Power RMS: 70 W
- Frequency Response: 45 Hz - 25 kHz
- Max. SPL Per Pair at 1 m: ≥106 dB
Recommended Products
Delivered within 3-5 working days
Prepaid Product
Customer Also Viewed
Samma3a Review
Technical Specification
WOOFER:
- Number: 1
- Basket Ø: 5" (127 mm)
- Cone Material: Polypropylene
TWEETER:
- Number: 1
- Type: U-ART
- Diaphragm Area: 4 inch² (2420 mm²)
- Equiv. Diaphragm Ø: 1.9" (48 mm)
- Velocity Transform Ratio: 4:1
- Diaphragm Weight: 0.17 g
- Waveguide: HPS
BUILT-IN AMPLIFIERS:
- Number: 2
- Woofer: 1
- Type: PWM
- Amp. Power RMS: 50 W
- Tweeter: 1
- Type: PWM
- Amp. Power RMS: 20 W
CONTROL OPTIONS:
- Input Sensitivity: Switchable +4 dBu / -10 dBV
- Gain: Yes
- High-Shelf: - 2 dB, 0 dB, +2 dB
- Low-Shelf: - 2 dB, 0 dB, +2 dB
INPUT CONNECTORS:
- Analog: XLR, RCA
- Input Impedance: 10 kOhm / 20 kOhm
GENERAL DATA:
- Panel: Rear
- Frequency Response: 45 Hz - 25 kHz
- THD > 80 Hz: 0.5 %
- Max. SPL per pair at 1 m: ≥106 dB
- Crossover Frequency: 3 kHz
- Max. Power Consumption: 132 W
- Weight: 12.6 lbs (5.7 kg)
- Height x Width x Depth: 11.7" x 7" x 11.7" (298 mm x 179 mm x 297mm)
WARRANTY: 1 year
What Is In The Box
- ADAM Audio T5V Two-Way 5-Inch Active Nearfield Monitor
- Power cord
- Quick Start Guide
Videos
Manufacture Description
ADAM AUDIO T5V
A beveled cabinet with a rear-firing bass reflex port and a small footprint allows placement anywhere in your room, no matter how small, and contains built-in DSP-controlled driver crossovers and equalization as well as multi-way analog connections. Powered with a 50 W Class D amplifier for the woofer and a 20 W Class D amplifier for the U-ART tweeter, the T5V produces SPLs of up to 106 dB per pair.
Excellent acoustic characteristics, small dimensions and an outstanding cost/performance ratio make this studio monitor perfectly suited for use in small control rooms in music, video and broadcast production.
If you need to hear more bottom end, the T5V is compatible with the ADAM Audio T10S subwoofer.
