Allen & Heath ZEDi-10FX Compact Hybrid Mixer/USB Interface

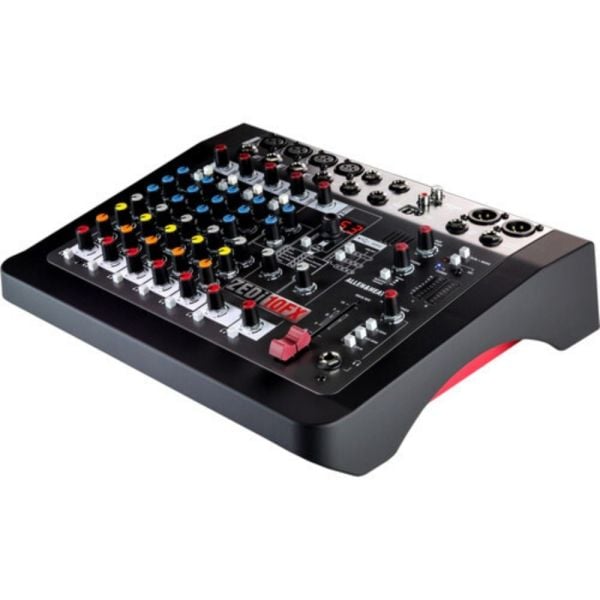

Designed to bring the signature Allen & Heath sensibility to a compact and portable frame, the ZEDi-10FX is a ten-channel mixer that sports reverb, delay, chorusing, and tap-tempo functionality. But that's not all: the unit also doubles as a USB interface offering four channels of conversion—either analog-to-digital or vice-versa.
Features:
- 4 in, 4 out USB Audio Interface (24-bit/96kHz)
- Cubase LE Software included
- Cubasis LE App included
- 4 Mic / Line Inputs with separate XLR and TRS jack sockets
- 2 Stereo Inputs with TRS jack sockets
- 2 Guitar DI high impedance inputs, eliminating the need for DI boxes
- Internal FX Engine with Tap Tempo
- Lo-cut filter for cleaning up unwanted low frequency noise
- 3 band EQ for easy creative and corrective tonal shaping
Recommended Products
Prepaid Product
Customer Also Viewed
Samma3a Review
Technical Specification
Inputs & Outputs:
- Total # Of Inputs: 12
- XLR Audio Input: 4 x XLR Inputs
- Line In / Microphone In:
- 4 x, Channels 1 through 4
- 4 x, Channels 5 and 6 (2 x Stereo Pair)
- Instrument Input: 2 X High Impedance
- Main Output: 2 x XLR
- Monitor Output: 2 x RCA
- Line Output:
- 1 x 1/4" (Headphones)
- 1 x 1/4" (Aux Out)
- 1 x 1/4" (FX Out)
Digital Audio:
- Computer Connectivity: USB (Type B)
- Digital I/O:
- 4 x Input
- 4 x Output
- Sample Rate and Resolution: Up to 24-bit/96 kHz
Channels:
- EQ Section:
- 3-Band (Channels 1 through 4)
- 2-Band (Channel 5, Stereo)
- 4 x High-Pass Filters (Channels 1 through 4)
- Trim/Gain Control: 5 x
- Channel Level Controls: 7 x
- Phantom Power for Mic Inputs: 4 x
Dimensions & Weight:
- Dimensions (H x W x D): 3.8 x 13.1 x 10.8" / 96.5 x 332.7 x 274.3 mm
- Weight: 5.1 / 2.3 kg
Warranty: 1 year
What Is In The Box
- Allen & Heath ZEDi-10FX Compact Hybrid Mixer/USB Interface (with On-Board Effects Engine)
- Bundle of Cubase LE Software & Cubasis LE App
Videos
Manufacture Description
MIXER + USB INTERFACE
ZEDi-10FX offers the best of both worlds, incorporating a studio quality 4 in / 4 out, 24-bit/96kHz USB audio interface for hassle-free multitrack recording and playback to/from a Mac or PC, or to an iOS device using the iOS camera kit. The USB output source can be set up in several different ways to match your workflow.
CUBASE LE MUSIC PRODUCTION SOFTWARE INCLUDED
ZEDi-10FX comes with the acclaimed Cubase LE software. Cubase LE offers powerful yet easy-to-use software tools for audio recording, editing, MIDI sequencing and mixing. Its vast range of proven editing and sequencing tools can be used for a large range of music styles and areas of application. From singers and songwriters recording vocal lines to rock bands jamming in their rehearsal room, Cubase LE is as easy as it gets – with outstanding audio quality as well as time-saving recording and editing functionality.
ZEDFX MULTI MODEL
ZEDi-10FX boasts a brand new suite of studio quality reverbs and delays, painstakingly crafted to enhance your recordings and performances. Special multi-model effects provide uniquely dynamic combinations of reverbs and delays.
EXCEPTIONAL AUDIO QUALITY
ZEDi-10FX features an exceptional new preamp design, created by analogue guru, Mike Griffin and developed from his highly acclaimed GS-R24 studio recording console. Known as GSPre, the preamps deliver exceptionally low noise and massive headroom, and the warmth and depth that Allen & Heath’s analogue range is famous for. For tonal shaping, the precise 3 band MusiQ EQ controls have been carefully calibrated for responsiveness and precision, making it easy to shape and enhance each musical source.
