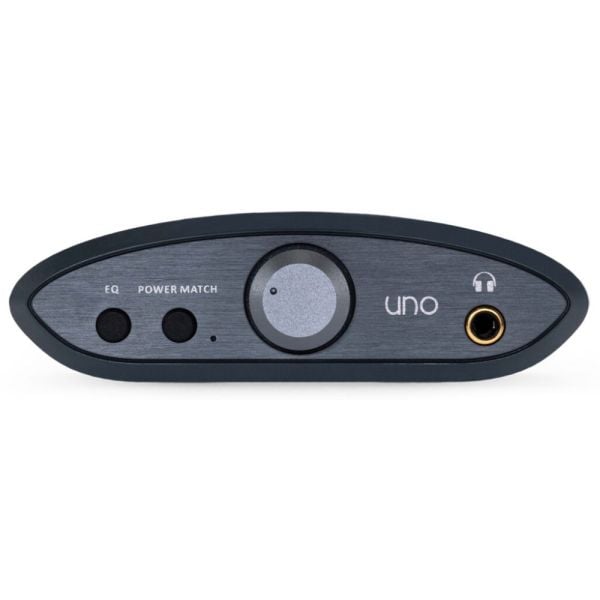

iFi Audio UNO USB DAC and Headphones Amplifier
Not sure what a DAC is but know you want better sound quality for your music, movies, games, podcasts and YouTube guilty pleasures? Then, the new iFi Uno is for you. All devices that act as digital sound sources use a built-in DAC (Digital to Analogue Converter) to convert the digital info in your source device – your computer, tablet or smartphone – to music you can hear through speakers or headphones. External DACs sound much better than the standard DACs used inside these devices.
Features:
- Sophisticated ES9219 Sabre DAC chip with Quad DAC+ technology and premium amplification elevates audio to a thrilling new level
- Music, Movie and Game modes – adjust sound to suit your choice of entertainment
- Supports hi-res audio up to 32-bit/384kHz PCM, DSD256 and MQA
- 32-bit HyperStream III DAC architecture and Time Domain Jitter Eliminator
- High-quality volume control and switchable gain to match your headphones
- 3.5mm headphone output, plus gold plated RCA to connect to an amp or powered speakers
- USB-C input: connect PCs, Macs, tablets, smartphones, games consoles, TVs and more
Recommended Products
Prepaid Product
Customer Also Viewed
Samma3a Review
Technical Specification
- Digital Input: USB-C
- Formats:
- DSD 256 /11.3MHz
- DXD 384kHz
- PCM 384kHz
- MQA
- DAC: Bit-Perfect DSD & DXD DAC by ESS
Line Section:
- Output: 2V max.
- Output Impedance: <100Ω
- SNR: ≥119dBA
- DNR: ≥115dB @ 0dBFS
- THD+N: ≤0.03% @ 0dBFS
Headphone Section;
- Output: ≥2.6V / 3.5V max. at 32Ω/300Ω
- Output Power: ≥211mW @ 32Ω; 39mW @ 300Ω
- Output Impedance: <1Ω
- SNR: ≥113dBA
- DNR: ≥110dB @ 0dBFS
- THD+N: ≤0.02% (1.27V @ 16Ω)
- Channel separation: ≥80dB (1kHz/600Ω)
- Frequency Response: 10-80kHz(-0.5dB)
- Power supply requirement: USB-C 5V/0.5A
- Power consumption:
- No Signal ~0.8W
- Max Signal ~1.5W
- Dimensions: 88 x 81 x 26 mm (3.5" x 2.8" x 1.0")
- Net Weight: 92 g (0.2 Ibs)
- Warranty: 1 year
What Is In The Box
- 1 x iFi Audio UNO USB DAC and Headphones Amplifier
- 1 x USB-A to USB-C Cable
- 1 x Instruction Card
- 1 x Quick Start Card
Videos
Manufacture Description
Work. Chill. Play.
One simple device. Three unique modes.
Music mode unlocks detailed and engaging sound from all your favourite artists. Listen while you work. Movie mode enhances dialogue clarity when you’re streaming films and must-watch TV shows. Never miss a moment. Game mode makes low-level sound effects crystal-clear. Always hear your enemies coming and storms brewing. Simply use the button on the front panel to cycle through the three settings. Illuminated logos on the top of the iFi Uno indicate your chosen mode.
The One you want
Small enough to fit into the palm of your hand, the iFi Uno’s cute, curvy case is made from tough, mineral-filled polymer. Inside, the sophisticated DAC and headphone amp circuitry will upgrade the basic audio tech in all sorts of digital devices.
Connect the iFi Uno via the USB-C input to your Windows PC, Apple Mac, smartphone or tablet. It needs no power source as it receives both power and audio data from the source it is connected to.
Add headphones, powered speakers or an amp and separate speakers and you have what you’ve always wanted – bigger, bolder, more detailed sound.
Awesome analogue
The Uno’s analogue circuitry is just as vital to the supercharged sound quality it provides as its digital tech.
The headphone amp feeds a 3.5mm socket at the front, incorporating iFi’s S-Balanced configuration to reduce noise and crosstalk. The stereo RCA output at the rear also benefits from our knack for delivering high-grade audio circuitry in remarkably affordable devices.
All the analogue outputs are gold-plated to resist corrosion and maintain conductivity over time.
Most DACs still use digital volume control – ours is analogue. Why is this special? When you reduce the volume on other DACs you remove data from the song or soundtrack. With analogue volume control, you reduce the volume whilst maintaining the quality.
And finally, there’s PowerMatch – this ensures you always have the right amount of power to drive the headphones you are using.
You can count on the iFi Uno to deliver great sound for everyone.
