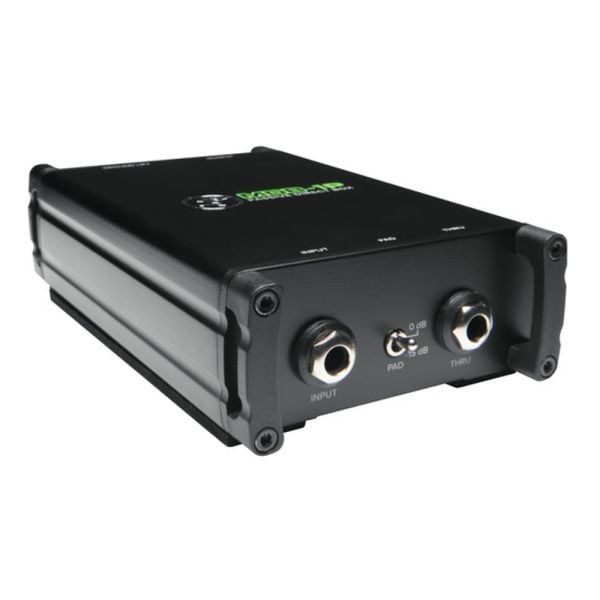

Mackie MDB-1P Passive Direct Box
The Mackie MDB-1P is a passive direct box designed to connect a single instrument such as a guitar, bass, or keyboard to a microphone preamp for musicians and audio engineers in recording sessions, houses of worship, and live stage applications. It converts a high-impedance, instrument-level signal via its 1/4" TS unbalanced input to a low-impedance, mic-level output via its balanced XLR 3-pin jack. A 1/4" thru jack allows simultaneous connection to an amplifier or pedalboard.
- Connect an Instrument to a Mic Input
- Converts Unbalanced to Balanced
- Converts High Impedance to Low Impedance
- 1/4" Unbalanced Input
- 1/4" Thru Jack
- XLR Balanced Output
- Switchable Pad Prevents Overloading
- Ground-Lift Switch Minimizes Hum
- No Power Source Required
Recommended Products
Prepaid Product
Customer Also Viewed
Samma3a Review
Technical Specification
- Type: Passive Direct Box
- Input Connections: 1 x 1/4" TS unbalanced
- Output Connectors: 1 x 1/4" TS unbalanced, 1 x XLR 3-pin balanced
- Input Impedance: 140 kOhms unbalanced
- Output Impedance: 400 Ohms unbalanced
- Impedance Ratio: 350:1
- Pad: -15 dB
- High-Pass Filter: None
- Controls: Pad, Ground-lift switch
- Frequency Response: 20 Hz to 20 kHz (±0.2 dB)
- Signal to Noise Ratio: Not specified by manufacturer
- Dynamic Range: 128 dB
- Total Harmonic Distortion: 0.002% from 1 kHz
- Power Requirement: None
- Current: N/A
- Construction Material: Heavy-gauge steel chassis
- Dimensions (H x W x D): 1.5 x 3.4 x 5.8" / 38 x 86 x 147 mm
- Weight: 0.8 lb / 0.4 kg
- Warranty: 1 year
What Is In The Box
- Mackie MDB-1P Passive Direct Box
Videos
Manufacture Description
PREMIUM
WITHOUT THE PRICE TAG
Direct boxes are an essential tool for any stage or studio. They make it easy to get clean, low-noise audio to a mixer no matter what instrument you are using. Available in four versatile models, our ultra-affordable DI's offer the Mackie sound quality that you expect with Built-Like-A-Tank™ construction for maximum reliability. From acoustic guitars to laptops, be ready for anything with MDB Series direct boxes.
FEATURES
VERSATILITY
THE PERFECT MATCH
With four models to choose from, you can get the perfect match for your instruments. Acoustic guitars and keyboards are right at home with the MDB-1P and MDB-2P.
High output instruments will appreciate the extra headroom in the MDB-1A.
RUGGED
BUILT-LIKE-A-TANK™
From the inside out, MDB Series direct boxes are built to last. Thick steel chassis, impact resistant corners, and long-wearing jacks will keep these in your bag for years to come.
QUALITY
PREMIUM ANALOG CIRCUITRY
MDB Series direct boxes offer excellent noise performance and transparency. Whether you are in the studio or performing on stage, your instruments will always sound as good as they do at the source.
CONNECT
GET THE BEST SOUND FROM YOUR LAPTOP
The MDB-USB is the ultimate way to get pristine digital audio from your laptop directly to a mixer or front-of-house in a venue.
SERIES LINE-UP
Built-Like-A-Tank reliability and legendary Mackie sound quality
MDB-1P
PASSIVE DIRECT BOX
- Perfect for live sound and studio applications
- High-impedance 1/4" input with Thru output
- Balanced male XLR output connector with Ground Lift
- Ultra-low noise and distortion
- -15dB pad ensures distortion-free performance when connecting to high-level sources
- Built-Like-A-Tank™ construction
