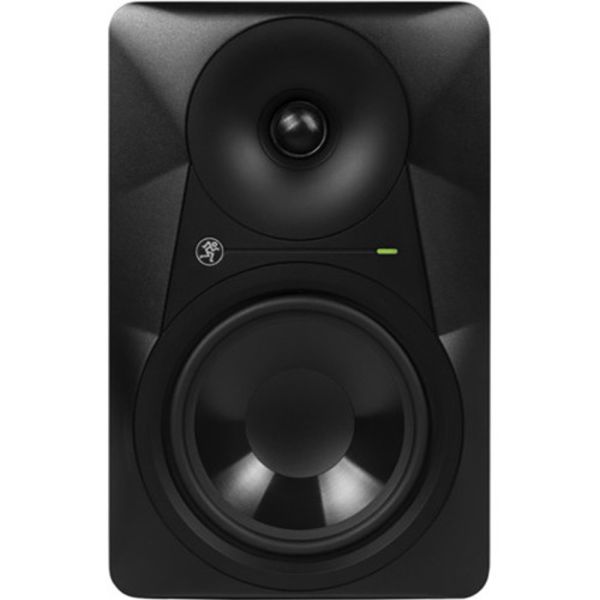

Mackie MR624 Two-Way Powered Studio Monitor (Single)
The Mackie MR624 Studio Monitor is a powered 6.5" 2-way reference speaker that is designed for mixing and monitoring in users home or project studio. It features a logarithmic waveguide system thataims to minimize reflections and diffractions for a wider sweet spot, plus a custom-tuned rear port to help ensure an even bass response.. Additionally, a high-frequency filter applies a boost or cut to compensate for particularly bright- or dull-sounding rooms.
- Woofer & 1" Tweeter
- Matched Amps & Drivers
- Class-A/B Amplification
- Enhanced Waveguide System
- XLR, TRS & RCA Inputs
- Internal Acoustic Absorption Material
Recommended Products
Prepaid Product
Customer Also Viewed
Samma3a Review
Technical Specification
- Type: Studio Monitor
- Frequency Response: 45 Hz to 20 kHz, (-3 dB), 38 Hz to 20 kHz, (-10 dB)
- Transducer Low Frequency: 6.5" / 165 mm (polypropylene-coated woofer)
- High Frequency: 1.0" / 25 mm (silk dome tweeter)
- Power: 65 W
- Crossover Frequency: 3 kHz
- Controls and Processing: Power, Level, HF-boost/cut, Acoustic space control
- AC Power: 100 to 120 VAC
- Package Weight: 17.5 lb
- Enclosure Material: Solid MDF
- Finish: Black vinyl wrap
- Port Configuration: Custom-tuned rear port tube
- Display & Indicators: LED power ring around volume knob
- Weight 16.5 lb / 7.5 kg
- Warranty: 1 year
What Is In The Box
- Mackie MR624 - 6.5" 2-Way Powered Studio Monitor (Single)
- Power Cord
Videos
Manufacture Description
The Mackie MR624 Studio Monitor is a powered 6.5" 2-way reference speaker that is designed for mixing and monitoring in your home or project studio. It features a logarithmic waveguide system that aims to minimize reflections and diffractions for a wider sweet spot, plus a custom-tuned rear port to help ensure an even bass response.
The MR624 is equipped with matched amps and drivers for an optimized 65W Class-A/B bi-amplified system. The speakers can also be optimized to your mixing environment with the adjustable acoustic space filters designed to maintain a flat response in typical placement configurations. Additionally, a high-frequency filter applies a boost or cut to compensate for particularly bright- or dull-sounding rooms.
The MR624 has been designed with flexibility in mind, featuring XLR, TRS and RCA monitor inputs. The speaker has been housed in an all-wood cabinet that has been treated with acoustic absorption material for a tighter response. Additionally, the MRS10 studio subwoofer can be added for a more powerful, extended low end.
-
- Designed for superior mix translation and accuracy for professional results in any studio
- Equipped with Mackie’s proven logarithmic waveguide design
- Ultra-wide dispersion for enhanced stereo imaging and listening sweet spot
- Precise acoustic alignment offers incredibly balanced sound across the entire frequency spectrum
- 1” silk dome tweeter provides fast transient response for detailed high end and vocal clarity
- 6.5” polypropylene woofer delivers responsive, dynamic low frequency response
- 65-watts of bi-amplified Class A/B amplification
- Frequency Response: 38 Hz – 20 kHz
- Optimize MR monitors for your mixing environment
- Adjustable acoustic space filters maintain flat response in typical placement configurations
- HF filter applies boost or cut to compensate for particularly dull- or bright-sounding rooms
- Professional all-wood cabinet design built to last and look great in any studio
- Custom-designed internal bracing adds stiffness for reduced distortion and enhanced low-frequency response
- Flexible inputs for simple connection to almost any audio source
- Acoustically optimized with sound-tightening acoustic absorption material
- Add the optional MRS10 studio subwoofer for powerful, deep low-frequency extension, well suited for electronic music, hip-hop and mor
