Woo Audio WA11 Topaz Headphone Amplifier / DAC
It all started when Woo Audio was developing the WA8 Eclipse. Woo designers learned that in order to reduce the size greatly, the circuitry needed to use transistors. Introducing the WA11 Topaz, an ultra-compact, high-performance, solid-state headphone amplifier and DAC.
- Fully-balanced design, battery-operated, solid state, Class-A headphone amplifier and DAC
- High power, high bandwidth amplifier
- ESS SABRE Reference DAC (ES9018M)
- Hi-Res music playback up to 24-bit/384kHz PCM, up to DSD128 support via DoP playback
- Premium TKD 4-channel balanced potentiometer
- Output: 4.4mm Pentaconn balanced, 1/4" TRS unbalanced for use with full-size headphones
- Input: 4.4mm Pentaconn balanced, Asynchronous Hi-Speed USB Type-C port [data] and USB Type-C port [charge] (USB 2.0 compliant)
Recommended Products
Prepaid Product
Customer Also Viewed
Samma3a Review
Technical Specification
- Fully-balanced, battery-operated headphone amp/DAC
- High power, high fidelity amplifier
- Maximum power output: 1.2W @ 30 Ohms
- Output impedance: 1Ω on both headphone outputs
- Frequency response: 10 Hz to 200 kHz (-1 dB)
- Signal to noise ratio: 118dB
- Input: 4.4mm balanced (LINE),
- USB 2.0 type-C (audio), USB-C 2.0 (charge)
- User selectable HI or LO power level output
- User selectable DAC or LINE Input
- Output: 4.4mm balanced, 6.3mm TRS unbalanced (recommended for full-sized headphones)
- Hi-Res music playback up to 24-bit/384kHz,
- DSD via DoP (up to DSD128 or 5.6MHz)
- Rechargeable Lithium-ion battery
- Up to 6 hours of continuous playback *
- 100V–240V USB-A charger with wall adapters
- Weight: 455 g / 1 lb.
- Dimensions (W x H x D): 155 x 85 x 27mm
- 6.1 x 3.3 x 1 inches
- Warranty: 1 year
What Is In The Box
- Quick start guide
- WA11 Topaz Headphone Amplifier / DAC
- Soft Alcantara carrying pouch x 1
- USB type-C to A cable (USB 2.0 compliant) x 1
- USB type-C to C cable (USB 2.0 compliant) x 1
- USB Charger with detachable AC plug x 1
- Wall plug adapter [UK, EU, Australia] x 3

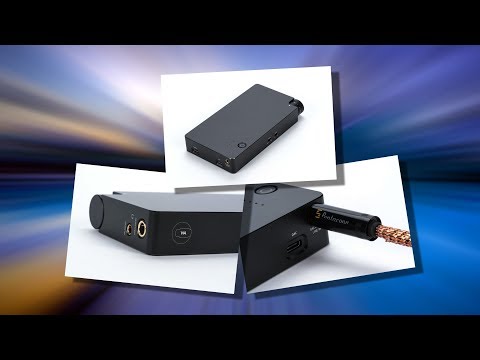

Videos
Manufacture Description
 |
WA11 Topaz Headphone Amplifier / DAC |
OverviewIt all started when we were developing the WA8 Eclipse. We learned that in order to reduce the size greatly, it needs to be with transistors. Introducing the WA11, an ultra-compact high-performance headphone amplifier and DAC. Over the course of 3-years of intensive research and 9 working prototypes deployed in real-world applications. WA11 delivers an audiophile sound quality that rivals many desktop systems and with the features users dream of. Weighing at 413g and 24mm thick, the WA11 Topaz is a battery-powered, fully-balanced headphone amplifier and DAC running in a Class-A topology. It is capable of driving the most demanding full-size headphones while maintaining an ultra-low noise floor for reference in-ear monitors. The DAC is an ESS Sabre capable of decoding PCM up to 24-bit/384kHz and up to DSD128. There is also a 4.4mm balanced input for use with balanced sources such as a modern digital-audio-player (DAP), home CD player or DAC The future is USB Type-C port. And WA11 Topaz has two of them - one for data, one for charging (USB 2.0 compliant). Separating the two allows the user to listen and recharge the internal battery simultaneously. This feature extends the industry leading 7 hrs. of playtime immensely. The performance and usage flexibility of WA11 will change the way we enjoy music and opens a new world for what a Hi-Fi system should be. |
|
 |
|
