Neumann U 87 Ai Condenser Microphone - Nickel

Samma3a Rating:
AED11,829.30

The cardioid characteristic maintains a smooth frequency response at a distance of 30 to 40 cm, and the figure-8 characteristic at a distance of 15 to 20 cm.

Features:

  • Variable large diaphragm microphone
  • Pressure-gradient transducer with double membrane capsule
  • Omnidirectional, cardioid, and figure-8 characteristics
  • Switchable low frequency roll-off
  • Switchable 10 dB pre-attenuation
  • Great as a main or as a support microphone
Read More

Customer Also Viewed

Samma3a Review

Not Available

Technical Specification

Microphone

  • Operating Principle Pressure Gradient
  • Capsule Condenser
  • Polar Pattern Cardioid, Figure-8, Omnidirectional
  • Pattern Selection Switched
  • Pad -10 dB

Performance

  • Frequency Range 20 Hz to 20 kHz
  • Maximum SPL 117 dB SPL
  • Impedance 200 Ohms
  • Load Impedance 1000 Ohms
  • Sensitivity
    • 28 mV/Pa at 1 kHz into 1 Kilohms
    • 22 mV/Pa at 1 kHz into 1 Kilohms
    • 20 mV/Pa at 1 kHz into 1 Kilohms
  • Signal-to-Noise Ratio
    • 71 dB CCIR
    • 69 dB CCIR
    • 68 dB CCIR
    • 82 dB A-Weighted
    • 80 dB A-Weighted
    • 79 dB A-Weighted
  • Equivalent Noise Level
    • 23 dB CCIR
    • 25 dB CCIR
    • 26 dB CCIR
    • 12 dB A-Weighted
    • 14 dB A-Weighted
    • 15 dB A-Weighted
  • THD 0.5%

Connectivity

  • Output Connectors (Analog) 1 x XLR 3-Pin

Power

  • Operating Voltage 48 V ± 4 V
  • Operating Current Consumption 0.8 µA

Physical

  • Dimensions ø: 2.2 x L: 7.87" / ø: 55.88 x L: 199.9 mm
  • Weight 1.1 lb / 500 g

Warranty 1 year

What Is In The Box

  • Neumann U 87 Ai Condenser Microphone - Nickel

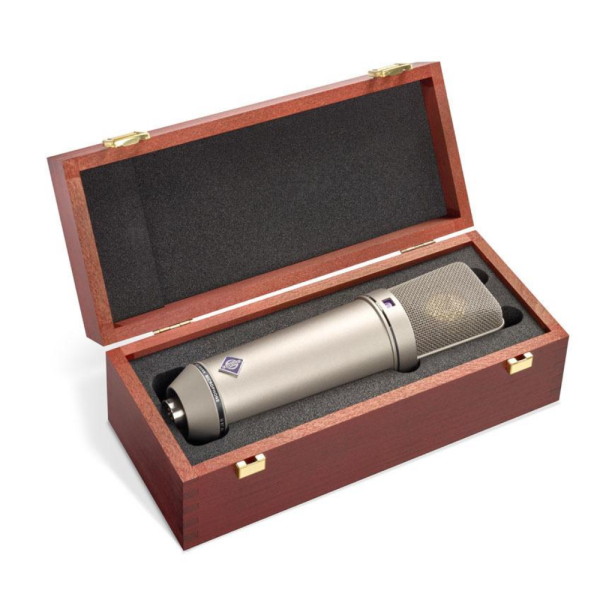

  • Wooden Box

Videos

No Videos Available

Manufacture Description

Switchable polar patterns

Switchable polar patterns

Offering a choice of three switchable polar patterns (omnidirectional, cardioid, and figure-8), the U 87 Ai gives you impressive flexibility when it comes to exploring different recording techniques. With two 87s, you can implement stereo techniques such as spaced pair (A/B), X-Y (including Blumlein), ORTF array, and mid-side (M-S). For full orchestra, add a third 87 for the minimalist — and highly effective — Mercury Living Presence technique: three spaced omni 87s across the orchestral soundstage, centered above the conductor's podium.

Updated with modern circuitry

Updated with modern circuitry

Neumann produced the original U 87 from 1967 to 1986, when it was replaced by the current version, the U 87 Ai. The U 87 Ai features upgraded electronic components; however, the capsule design remains unchanged. The modern circuitry increases the mic's operational headroom by reducing the resistance through which the capsule bias voltage is supplied. This gives you 10dB higher sensitivity for identical sound pressure levels and improves the signal-to-noise ratio by 3dB.

Filter and attenuation

Filter and attenuation

If you're using the U 87 Ai to capture a loud source, the microphone's switchable 10dB pre-attenuation pad comes in handy. With the pad activated, the mic accepts sound pressure levels up to 127dB — perfect for miking tom toms or a dimed guitar amp stack.

An additional switch engages the mic's low-frequency cutoff, which reduces undesirable mud and rumble at the input of the microphone amplifier. This setting also compensates for proximity effect, the bass boost that all pressure gradient transducers exhibit when placed very close to a source.
